Agile Offroad Rear Door Stops for 2019+ Mercedes Sprinter (VS30)
Agile Offroad Rear Door Stops for 2019+ Mercedes Sprinter (VS30)
In stock
Couldn't load pickup availability
- Secure Checkout
- Tested & Approved
- See our Return Policy for details
Rear door stops that limit how far your Sprinter’s rear doors swing open. With a bike carrier, tire carrier or storage box mounted on the door, a fully opened door can swing the accessory into the side of the van. These stops shorten the door’s travel so it stops before that happens.
They replace the factory plastic door stops at the top and bottom hinges, so the door’s load is spread evenly across both hinges. Installation takes a few minutes with hand tools.
Features
- Limits rear door swing to protect the van’s body from door-mounted accessories
- Direct replacement for the factory Sprinter door stops
- Works on driver-side and passenger-side rear doors
- Installs in minutes with basic hand tools

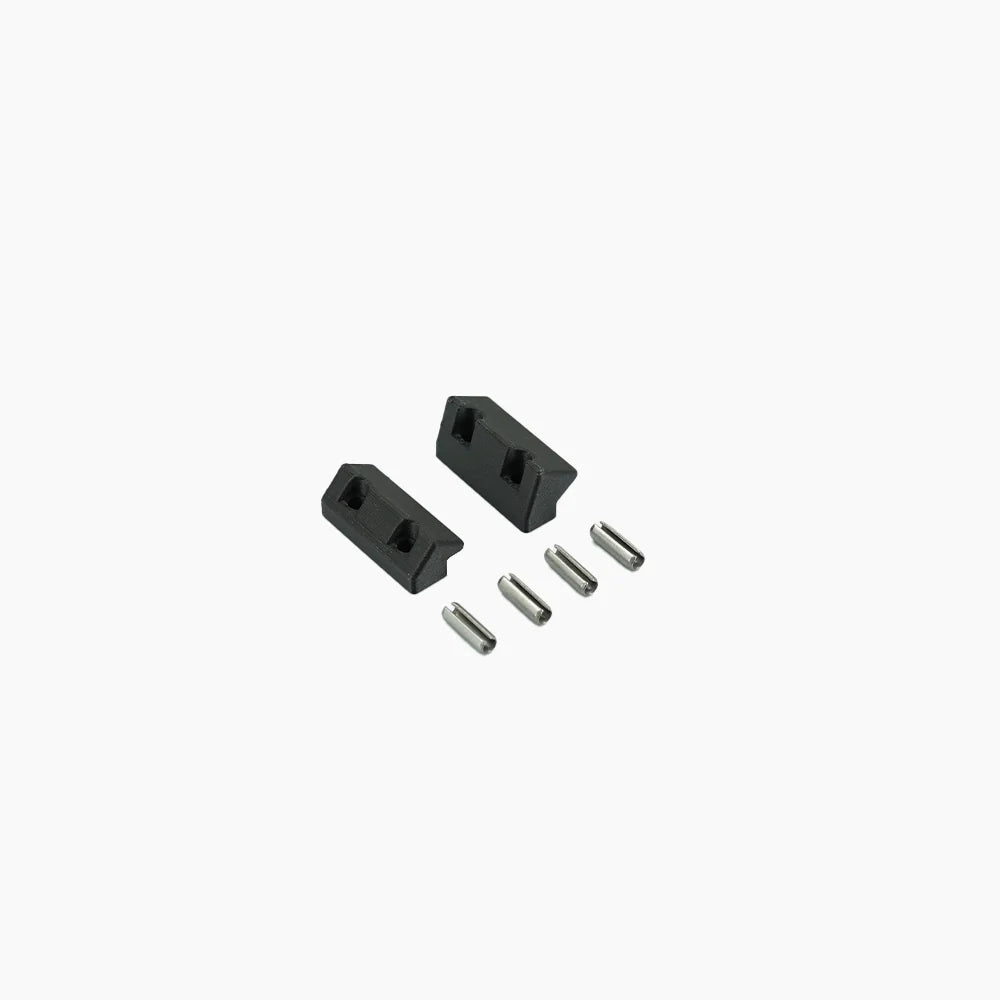

What’s included
- 1 upper hinge door stop
- 1 lower hinge door stop
- 4 mounting pins
One kit covers one rear door. Order two kits to fit both doors.
Fitment
- 2019+ Mercedes-Benz Sprinter (VS30 / W907)
- 2500 and 3500, 2WD and 4x4
- Factory 180° rear door hinges only (two round holes in the centre of the hinge)
- Not compatible with 270° hinges
Part number: Agile Offroad 900698777
- Part number: Agile Offroad 900698777
- Fit: 2019+ Mercedes-Benz Sprinter (VS30 / W907), 2500 and 3500, 2WD and 4x4
- Hinges: factory 180° rear door hinges only (not 270°)
- Includes: upper and lower door stop, 4 mounting pins (one door)
- Material: 3D-printed stops
- Weight: 0.1 lb
3D-printed door stops with mounting pins. Wipe clean as needed.
Does one kit fit both rear doors?
No. One kit covers one rear door, with an upper and a lower stop. Order two kits for both doors.
How do I know if my van has 180° or 270° hinges?
180° hinges have two round holes in the centre of the hinge. These stops fit 180° hinges only, not 270°.
Will these fit a 2018 or older Sprinter?
No. They’re made for the 2019+ Sprinter (VS30 / W907).
How hard is installation?
They replace the factory door stops and install in a few minutes with hand tools.
Do they work with door-mounted accessories?
Yes. They limit door swing so bike carriers, tire carriers and boxes mounted on the door don’t contact the side of the van. Agile Offroad notes that results can vary with accessories from other brands.
