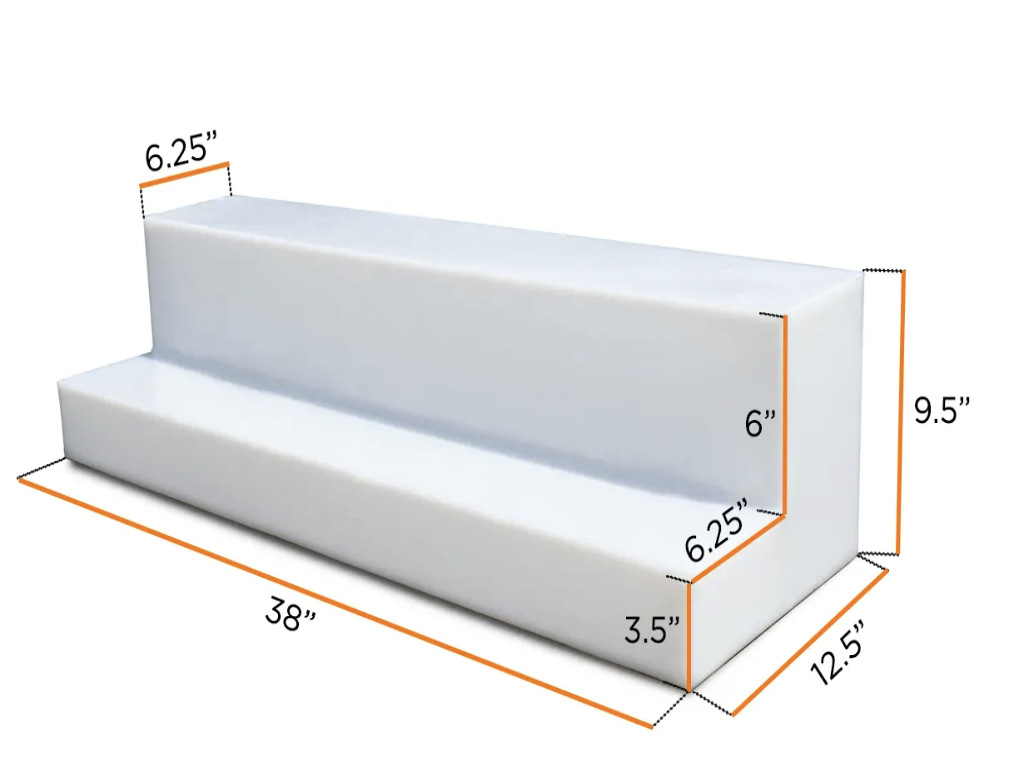

11 Gallon Sprinter Water Tank

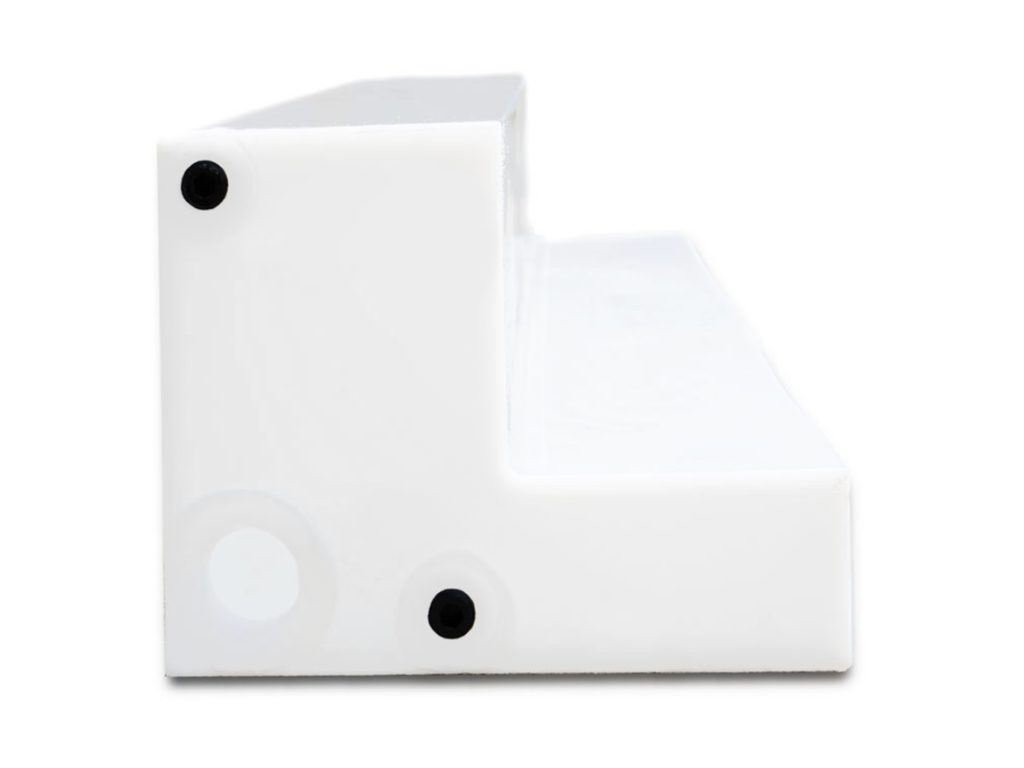

• Tank has one 1.5″ NPT port and two 1/2″ NPT ports on end that will face the rear of Van.
• Accepts universal fittings
• 11 gallon capacity (41.6 L)

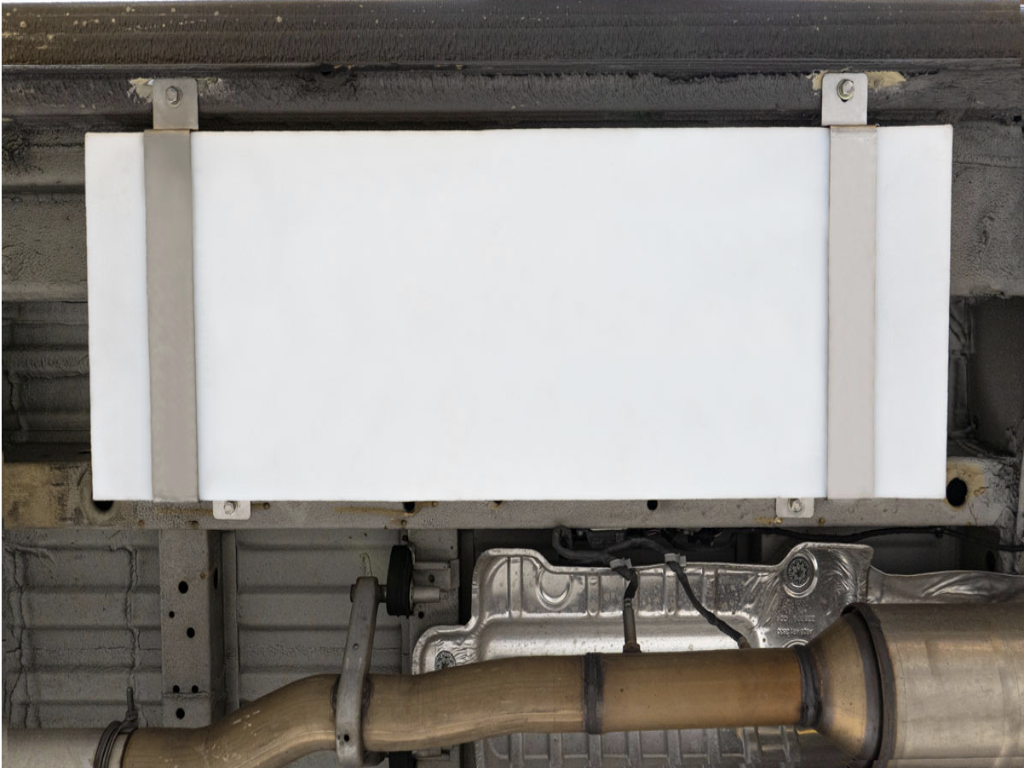

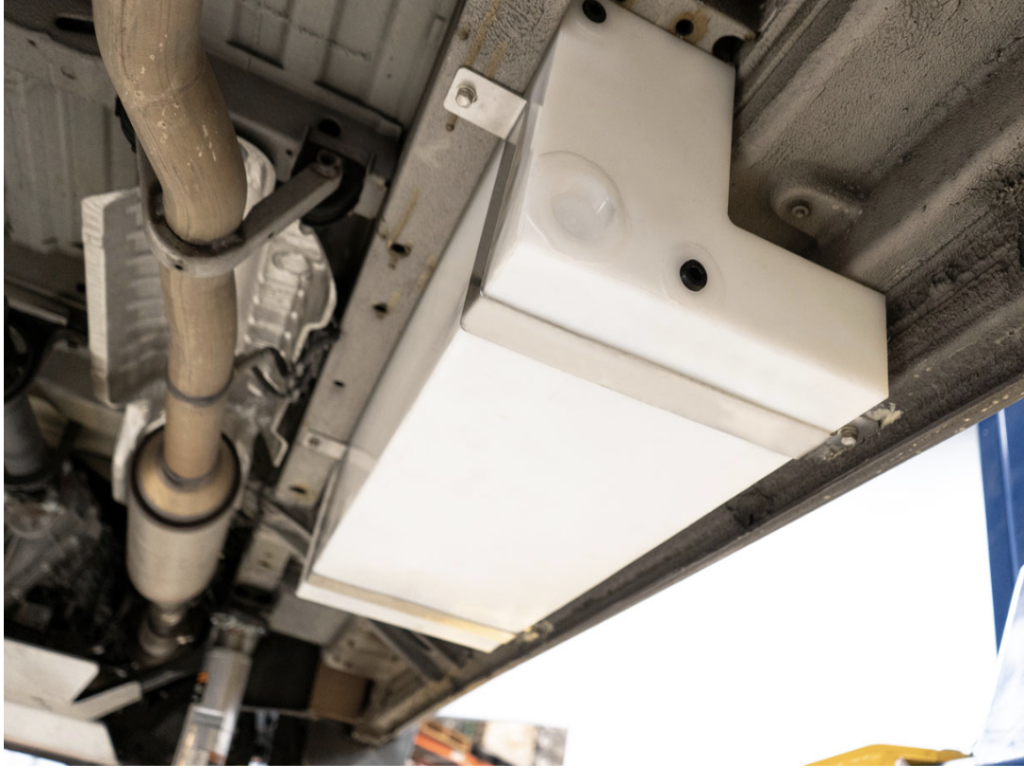

• Mounts between frame and a step cutout on passenger side of MBZ Sprinter
• Can be used for fresh water or grey water

Installation:

The tanks are manufactured with ports on both ends and the top to help meet your layout and plumbing needs. There is additional ports on top for filling or for installing a sensor to monitor the level.

Each tank is specified as follows:

There is an emblem on top — NW Conversions — along with an 1.5 inch sensor location or fill port on the top. The ports are an inch and half and half inch. The half inch ports will be provided with plugs. Use a 3/8 inch T-handle Allen key tool to remove the plugs. Reinstall the plugs in unwanted ports along with using plumbers tape or similar to seal the threads.

The 1.5″ ports have a membrane that is water tight.  To remove this membrane use a 1 3/4″ hole saw that is just smaller than the threads to drill the 1.5″ ports out that are to be used. Make sure to clean all particles out of the tank before installing fittings. This is easiest to do with an air compressor or vacuum. Once again, use plumbers tape or pipe sealant on all fittings.

Your tank is ready to be installed.

(2) 1.5” NPT ports (needs to be drilled out) on either end.

(2) 1/2” NPT ports on either end.

(1) 1.5” NPT port (needs to be drilled out) on top or fill or level sensor.

Designed to fit Sprinter and Transit vans (fits other vans as well).

Can be placed either driver or passenger side (left or right wheel sides)

Compatible:

• Mercedes Sprinter 1500/2500/3500
• Third Generation (VS30) 2019+
• Second Generation (NCV3) 2008-2018
