Lagun
Lagun Table Mounting Bracket
Lagun Table Mounting Bracket
In stock
Couldn't load pickup availability
- Secure Checkout
- Tested & Approved
- See our Return Policy for details
Add a second (or third) table location to your Lagun setup.

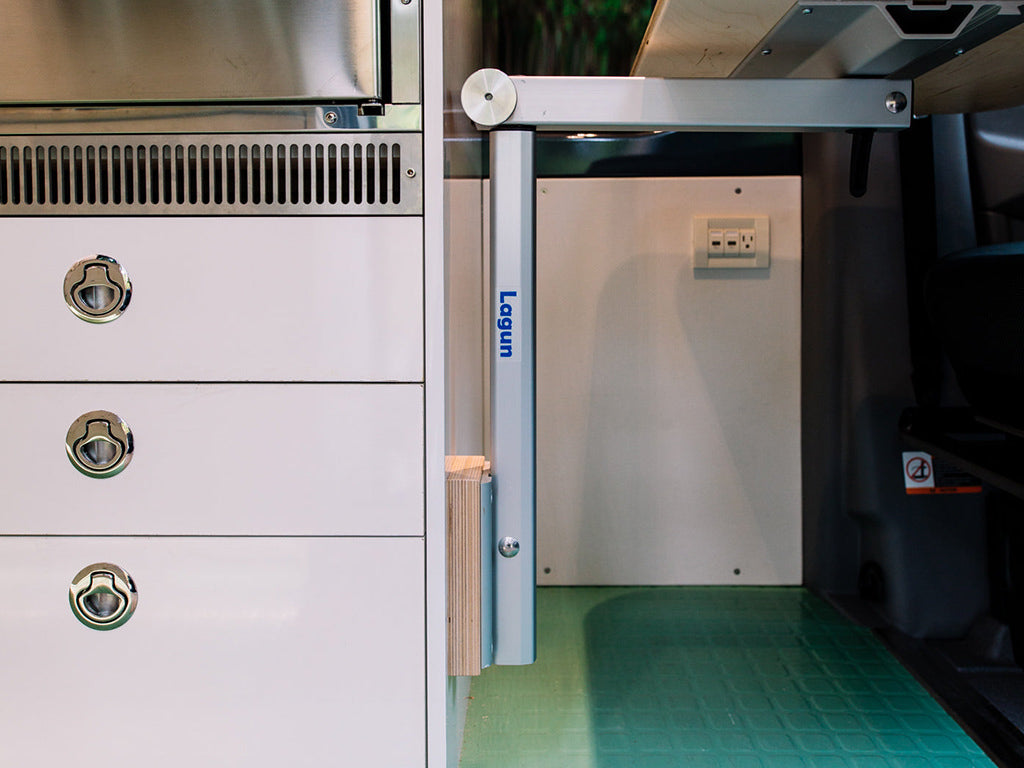

This is an additional wall mounting bracket for the Lagun Table Leg System — the part that attaches to your wall, cabinet, or post. If you already own a Lagun table leg, this bracket lets you install a new mounting point so you can quickly move your table between different spots in your van, RV, boat, or trailer.
How it works: Unscrew the vertical leg from your existing bracket, walk it over to this new bracket, slide it in, and tighten. Your entire table relocates in seconds — no tools needed after initial installation. Use it to switch between a dinette position, a kitchen prep spot, or an outdoor setup.
Choose your bracket size:

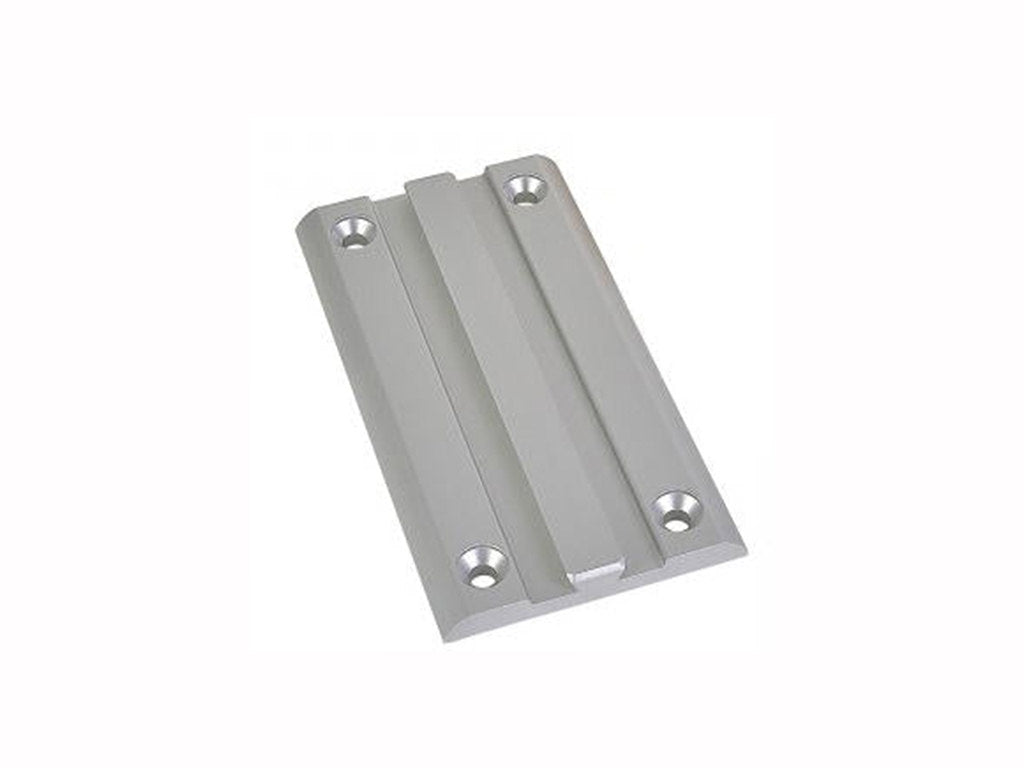

Standard Bracket (3.5" × 6.7") — The original, most common bracket. Four bolt holes in a rectangular pattern provide maximum stability. The bracket face is visible beside the leg when installed. Best for: most van builds, RVs, and boats where you have enough flat mounting surface.

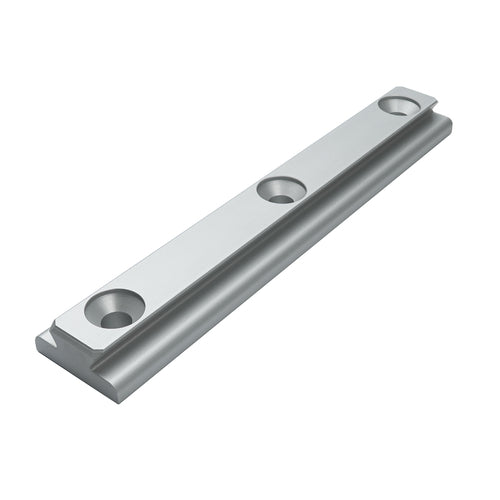

Sliver / Narrow Bracket (1 3/16" × 6.7") — A much narrower bracket with a vertical bolt pattern. Designed for tight spaces where a standard bracket won't fit. When installed, the bracket hides behind the leg and is virtually invisible. Same weight capacity, same function — just a narrower profile. Best for: B-pillars, narrow cabinet edges, tight corners, or builds where you want a cleaner look.
Both brackets are compatible with all Original Lagun leg styles — Standard, Double-Handled, and Longer. The weight capacity and function of the system does not change regardless of which bracket you choose. Not compatible with imitation/knockoff Lagun systems or round tube-style table legs.
This is the wall bracket only. It does not include the leg, arm, tabletop mounting plate, or tabletop. You need an existing Lagun Table Leg System to use this product.
Must be installed on a solid vertical surface. The Lagun system is only as stable as the bracket installation. Use all bolt holes and mount to a structurally sound surface.
What's in the Box
- 1 × Lagun wall mounting bracket (Standard or Sliver — based on your selection)
- Mounting hardware (bolts, washers, nuts)
- 2 × Plastic alignment wedges (for off-vertical surfaces)
- 1 × Backing board
Specifications — Standard Bracket
- Dimensions: 3.5" × 6.7" (89 mm × 170 mm)
- Bolt pattern: Rectangular (4 holes)
- Visibility: Visible beside the leg when installed
- Best for: Most standard installations with enough flat mounting surface
Specifications — Sliver (Narrow) Bracket
- Dimensions: 1 3/16" × 6.7" (30 mm × 170 mm)
- Bolt pattern: Vertical (2 holes)
- Visibility: Hidden behind the leg when installed
- Best for: Tight spaces, B-pillars, narrow cabinet edges, or a cleaner look
Both Brackets
- Material: Anodized aluminum
- Weight capacity: 50 lbs / 22.7 kg (same for both — bracket type does not reduce capacity)
- Compatible with: All Original Lagun leg styles (Standard, Double-Handled, Longer)
- Not compatible with: Imitation Lagun systems or round tube-style table legs
- Mounting surface: Must be installed on a solid vertical surface
- Brand: Lagun (Original)
- Includes: Mounting hardware, alignment wedges, backing board
- Does not include: Leg, arm, tabletop mounting plate, or tabletop
Is this the full Lagun table system? No. This is only the wall mounting bracket — the part that attaches to your wall. You need the complete Lagun Table Leg System (sold separately) to use this bracket. This is an add-on for people who already own a Lagun and want to add a second mounting location.
What's the difference between the Standard and Sliver bracket? Both hold the same weight (50 lbs) and work with all Original Lagun legs. The difference is size and appearance. The Standard bracket is 3.5" wide with a rectangular bolt pattern — it's the most common choice and provides maximum stability. The Sliver (narrow) bracket is only 1 3/16" wide with a vertical bolt pattern — it's designed for tight spaces and hides behind the leg for a cleaner look.
Which bracket should I choose? Choose the Standard bracket if you have enough flat mounting surface (at least 3.5" wide) and want the most solid installation. Choose the Sliver bracket if your mounting spot is narrow (like a B-pillar or thin cabinet edge), or if you prefer the bracket to be invisible behind the leg.
Why would I buy an extra bracket? The most common reason is to mount your table in two or more locations. For example, one bracket by your dinette seating and another by the kitchen for prep space. You just lift the leg out of one bracket and slide it into the other — takes seconds, no tools needed.
Does the bracket come with mounting hardware? Yes. The bracket includes bolts, nuts, washers, alignment wedges, and a backing board for installation.
Is this compatible with my Lagun? Both bracket types work with all Original Lagun leg styles (Standard, Double-Handled, and Longer). They are NOT compatible with imitation Lagun products or round tube-style table legs found in some older RVs.
Can I switch from a Standard bracket to a Sliver bracket (or vice versa)? Yes. The leg slides into either bracket type the same way. You can mix and match — for example, a Standard bracket in one location and a Sliver bracket in another.
Does the bracket type change the weight capacity? No. Both the Standard and Sliver bracket support the same 50 lb maximum (including the tabletop and anything placed on it).
Does Nomad Vanz ship to the USA? Yes. We ship throughout Canada and the United States.
Product Reviews
Bought and paid for what I thought was a kit. Went to pick it up and was originally presented with just the plate- which requires specific bolts, shims and a wooden mounting plate To use. When I questioned the employee he just turned, went back and got me the rest of the kit, minus the wooden plate. felt a bit odd as if trying to sell the package in pieces. Had to make the wooden plate
Very satisfied. Thank you !!!!
Exactly as described. Fits Lagun table in my RV (2020 Pleasure Way Plateau TS).
Plate is identical to original. Expensive but great quality.I was expecting to get the four bolts and nuts but this is for the plate only without hardware. Shipping by Canada Post was slow (shipped June 16, received July 3)
Perfect for my airstream, just need to find the right table top Top to make it perfect
