The Complete Ford Transit vs. Mercedes Sprinter Seat Swivel Guide

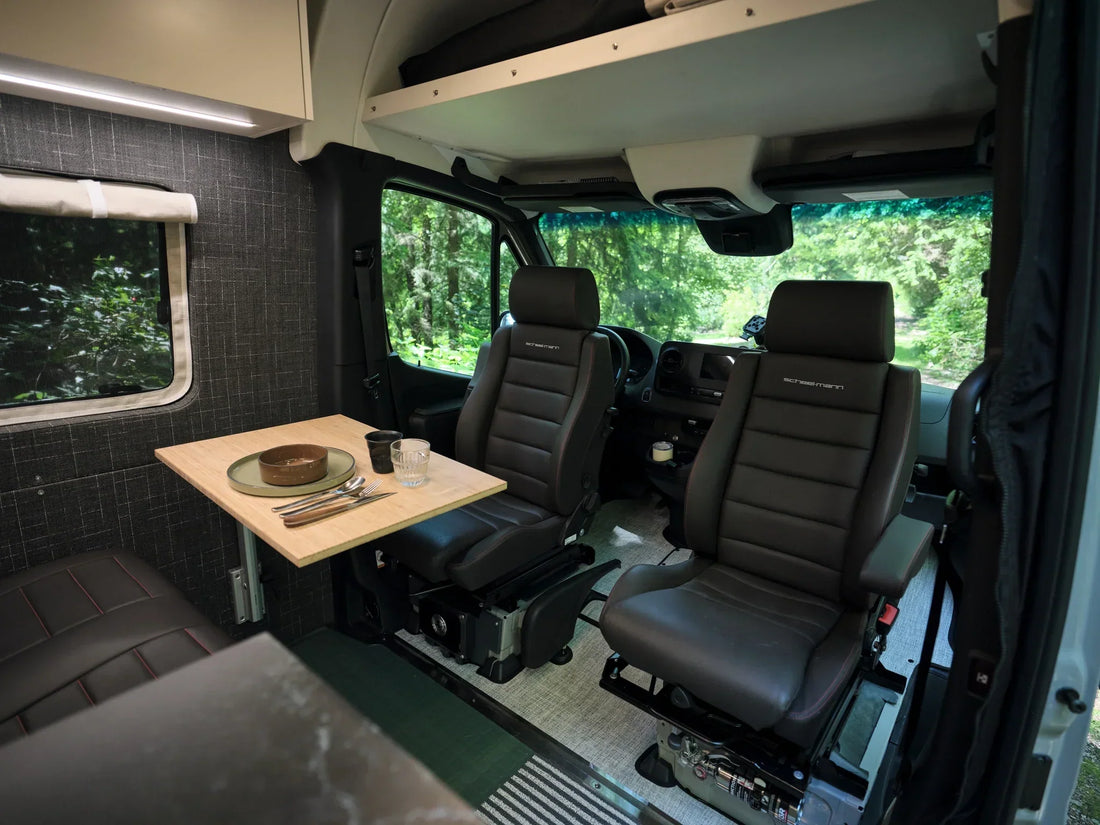

Open up the front cab of a custom van and you’ll see the single most cost-effective space multiplier in mobile architecture: swivel seat adapters. By spinning your driver and passenger seats 180 degrees into the living quarters, you instantly transform dead driving space into a lounge, dining room, or mobile workstation.
However, seating geometry varies drastically between chassis. Installing an aftermarket swivel adapter isn't just about matching bolt patterns—it dictates your driving ergonomics, seat height clearance, and handbrake operation. Here is everything you need to know about choosing and installing seat swivels for the Ford Transit and Mercedes-Benz Sprinter.
Quick Comparison Matrix: Sprinter vs. Transit Swivels
| Feature / Metric | Mercedes-Benz Sprinter (NCV3 / VS30) | Ford Transit (2015+) |
|---|---|---|
| Top Recommended Brand | SCOPEMA or Aguti | SCOPEMA |
| Added Seat Height | ~23mm (0.9 inches) | ~23mm (0.9 inches) |
| Handbrake Relocation Needed? | Yes (Manual brake models only) | Yes (Low-profile adapter bracket required) |
| Factory Power Seats Compatible? | Yes (Requires harness routing care) | Limited (Clearance check required) |
| Center Offset Rotation | Offset to clear door B-pillar | Offset to clear center console |
| TÜV Safety Certified | Yes | Yes |
Understanding the Offset: Why Geometry Matters
When you pull the release lever on a premium swivel like a SCOPEMA, the seat doesn't just spin on a central axis. It swivels on an eccentric offset.

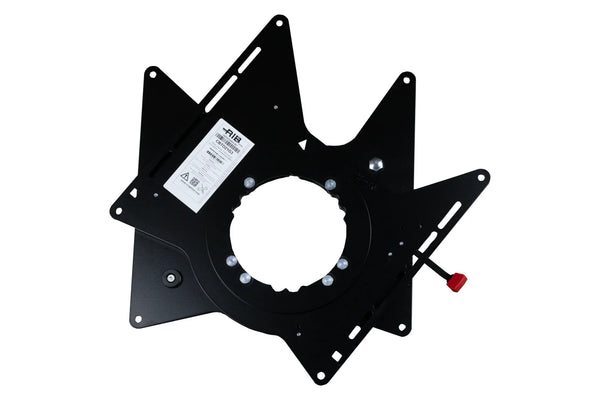

- In a Sprinter: The swivel pivots slightly inward to ensure the door armrest clears the B-pillar.

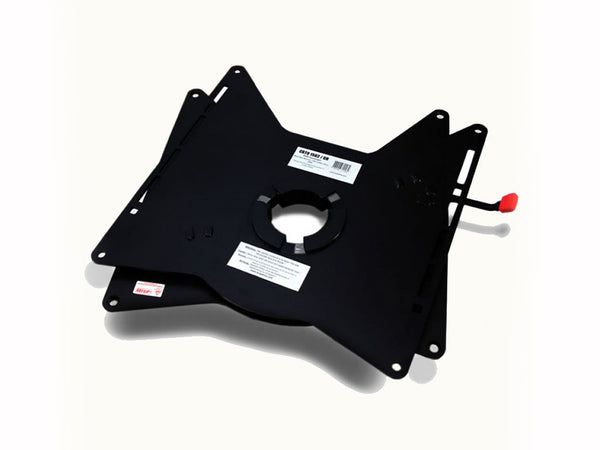

- In a Transit: The clearance check shifts to the center console and handbrake assembly.
Without an offset pivot, you would be forced to open your driver door every single time you wanted to rotate your seat indoors—a miserable reality during a downpour.
The Handbrake Dilemma
If your Ford Transit or older Sprinter features a mechanical handbrake lever, installing a driver-side swivel will block the lever when pulled up. To solve this, always pair your driver-side swivel with a Handbrake Relocation Bracket, which drops the resting height of the brake lever by roughly 40mm without sacrificing cable tension.
Key Takeaways for Your Build
Mind the height: Every swivel adds roughly 1 inch (23mm) to your seating position. Taller drivers should test headroom before adding swivels to factory-height bases. Smooth wire management: If your seats feature heated cushions or airbag sensors, center-bore swivels allow factory wiring harnesses to pass cleanly through the pivot point without pinch risks.
