The Ultimate Reference Guide: The Lagun Table Leg System & Mounting Brackets in Camper Van Conversions
“Simplicity is the ultimate sophistication.” – Leonardo da Vinci
In the architecture of a custom camper van, floor space is the most valuable and heavily contested commodity. Traditional RV and marine table setups relied on fixed, floor-mounted vertical pedestals. While functional, those permanent floor sockets create an inconvenient obstacle course right in the middle of your main aisle, forcing occupants to awkwardly sidestep metal poles every time they transition from the cab to the rear garage.
Enter the Lagun Table Leg System—engineered in Sweden and distributed by trusted outfitters like Nomad Vanz. It is widely recognized as the gold standard for flexible, space-saving table mounts in camper vans, motorhomes, travel trailers, and marine vessels. This comprehensive technical reference document details the specifications, engineering geometry, bracket variants, and installation mechanics of the Lagun system.
Comprehensive Technical Specifications Table
| System Attribute | Technical Specification |
|---|---|
| Manufacturer / Origin | Lagun (Original — Made in Sweden) |
| Primary Material | Saltwater-resistant anodized aluminum (Silver or Black finish) |
| Total Weight Capacity | 50 lbs / 22.7 kg (Includes tabletop weight + items resting on table) |
| Maximum Tabletop Size | 30" × 40" / 76 cm × 102 cm |
| Minimum Tabletop Thickness | 5/8" / 16 mm |
| Total System Weight | Approx. 7.7 lbs / 3.5 kg |
| Vertical Leg Length | 500 mm / 19.7 inches |
| Horizontal Arm Length | 400 mm / 15.7 inches |
| Vertical Adjustment Range | 11.5 inches / 29 cm of slotted groove travel |
| Swivel Articulation | 360° rotation at two independent pivot points (arm + tabletop mounting plate) |
| Locking Mechanism | Hand-tightened knobs (Zero tools required for daily adjustment) |

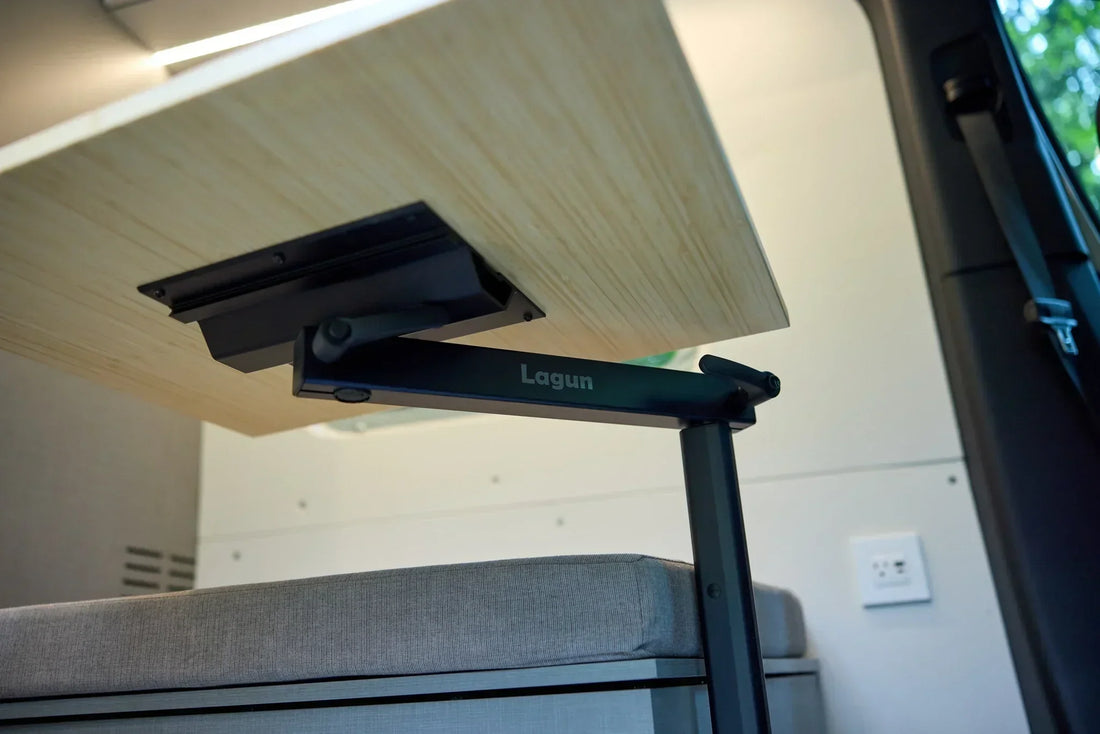

Engineering & Articulation Mechanics
The core brilliance of the Lagun system lies in its cantilevered design, which completely eliminates the need for a floor flange. The entire assembly consists of four primary structural components:
- The Wall Mounting Bracket: Bolted securely to a vertical surface (such as a seat base, cabinet face, or structural van B-pillar).
- The Vertical Leg: A 19.7-inch slotted aluminum post that drops into the wall bracket. It features an 11.5-inch vertical adjustment slot, allowing you to raise or lower the entire table height effortlessly.
- The Horizontal Swivel Arm: A 15.7-inch arm that clamps onto the vertical leg and provides the first 360-degree rotation axis.
- The Under-Table Mounting Plate: A 7.9" × 11.8" (200 mm × 300 mm) rectangular plate screwed to the underside of your custom tabletop, featuring the second independent 360-degree swivel joint.

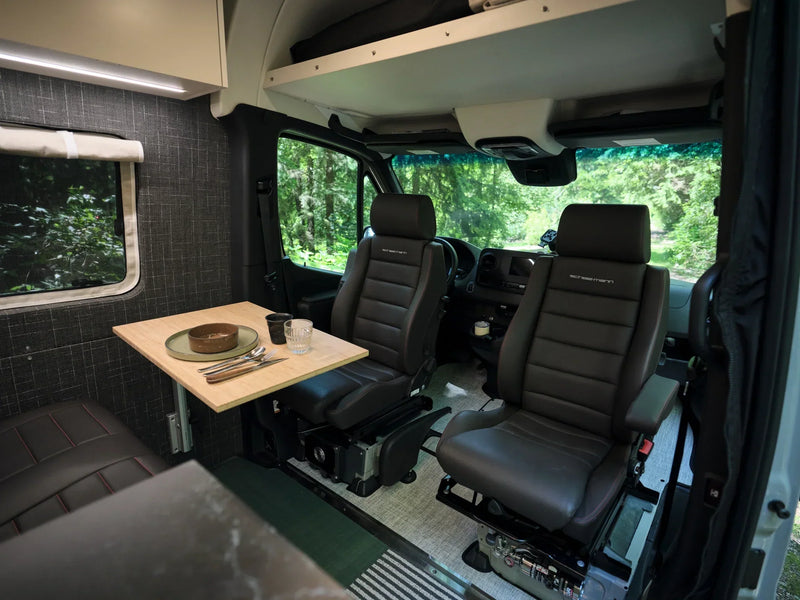

Because both the horizontal arm and the tabletop plate rotate independently through full circles, the table can be swung completely out of the footwell, tucked flat against a cabinet face, or positioned perfectly between driver and passenger swivel seats for morning coffee or a remote work session.
Mounting Bracket Options: Standard vs. Sliver (Narrow)
Depending on your interior layout, cabinetry design, and available mounting acreage, Lagun provides two distinct wall bracket configurations available through suppliers like Nomad Vanz:
| Bracket Type | Dimensions | Bolt Pattern | Visual Profiling | Ideal Application |
|---|---|---|---|---|
| Standard Bracket | 3.5" × 6.7" (89 mm × 170 mm) |
Rectangular (4-hole pattern) | Visible beside the vertical leg when installed | Most standard camper van cabinetry, flat bench faces, and marine bulkheads with ample surface area. |
| Sliver / Narrow Bracket | 1 3/16" × 6.7" (30 mm × 170 mm) |
Vertical (2-hole pattern) | Hidden entirely behind the vertical leg (virtually invisible) | Tight spaces, B-pillars, narrow cabinet edges, or minimalist builds requiring a streamlined visual finish. |
Note: Both brackets maintain the exact same 50 lbs (22.7 kg) weight capacity and are fully compatible with all original Lagun leg styles (Standard, Double-Handled, and Longer models). Neither bracket style is compatible with knockoff or generic round-tube imitation systems.
Multi-Location Setup Strategy
One of the most powerful features of the Lagun system is its modular portability. By purchasing an additional Lagun Table Mounting Bracket and installing it in a secondary location (e.g., one inside the dinette lounge and a second bracket mounted near the sliding door or exterior kitchen step), you can relocate your entire table assembly in seconds.
Relocation workflow: Simply loosen the lower locking handle, lift the vertical leg straight up out of the first bracket, walk it over to your second bracket location, slide it down into the channel, and lock it down. No tools required.
Crucial Installation Best Practices
- Structural Backing is Mandatory: The Lagun system is only as stable as the surface it is bolted to. Because the cantilevered arm exerts significant leverage and torque when weight is applied to the edge of the table, never screw directly into thin 1/4" cabinet paneling. Always reinforce the backside of your mounting wall with a robust backing plate (such as 3/4" void-free marine plywood or metal reinforcement plates) and utilize all provided fastener holes.
- Hand-Tight Only: When locking your height or arm positions, hand-tighten the adjustment knobs securely. Overtightening with tools can strip internal threads or damage the clamping blocks.
- Use Alignment Shims: If your van wall or seat base features a slight compound angle or non-vertical rake, utilize the included plastic alignment wedges to plumb the vertical leg true. If the leg leans off-center, gravity will cause the table arm to drift naturally toward the lowest point.
